The Pulmogine® Vibrating Mesh Nebulizer delivers different types of medication with an easy-to-use and effective system.
Product Photos
1/5
Components
Medication reservoir
Main unit
Mask
Power adaptor
How to Use Pulmogine®
1
Align the reservoir base with the top of the main unit and press until it clicks.
2
Twist the reservoir cap counterclockwise to open.
3
Pour recommended amount of medicine into the reservoir.
4
Twist the reservoir cap clockwise to close.
5
Connect either the mouthpiece or mask to the reservoir.
6
Press the On/Off button to start nebulization.
7
Breathe normally. Nebulize until the medicine runs out.
How to Use Pulmogine® Vibrating Mesh Nebulizer
How to Clean Pulmogine®
Four easy steps to clean your device.
Separate components and put mask/mouthpiece and reservoir in a container filled with warm soapy water.
Rinse them with water to remove soap residue.
Air dry components on a clean, lint-free cloth.
Disinfect components once a day by placing them in a commercial baby bottle steamer or 70% ethyl alcohol for approx. 1 min.
Spare Parts

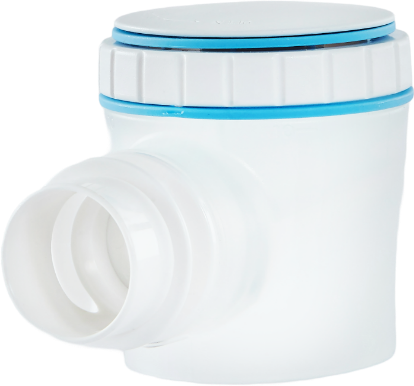

Medication Reservoir
*Adult Mask
*Pediatric Mask
*Mouthpiece
*Power Adaptor
*Availability of spare parts may vary in different regions/countries.
Please contact your local distributor.
Please contact your local distributor.
Product Specifications
- Model
HCM-86C
- Sound
< 50 dB
- Dimensions
74 mm (L) × 46 mm (W) × 96 mm (H)
- Min. fill volume
1 ml
- Weight
Approx. 75g (without batteries)
- Max. fill volume
10 ml
- Power supply
2 x 1.5 V AA alkaline batteries or power adapter
- Nebulization rate
≧ 0.25 ml/min
- Power consumption
Approx. 1.2W
- MMAD
< 5μm
